FROM OBSERVATION TO PREDICTION

SpatialMindFrom Sight to Foresight:
Predictive Spatial Reasoning
in Vision-Language Models

Feiran Wang^1,† Xiaoqi Wang^2,‡ Ziwei Li² Wenbin He² Yan Yan¹ Liu Ren²

¹ University of Illinois at Chicago² Bosch

† This work was done during an internship at Bosch.‡ Project lead.

Paper, code & data coming soon

TL;DR Ground spatial reasoning in metric geometry, understand observed dynamics, and anticipate what comes next.

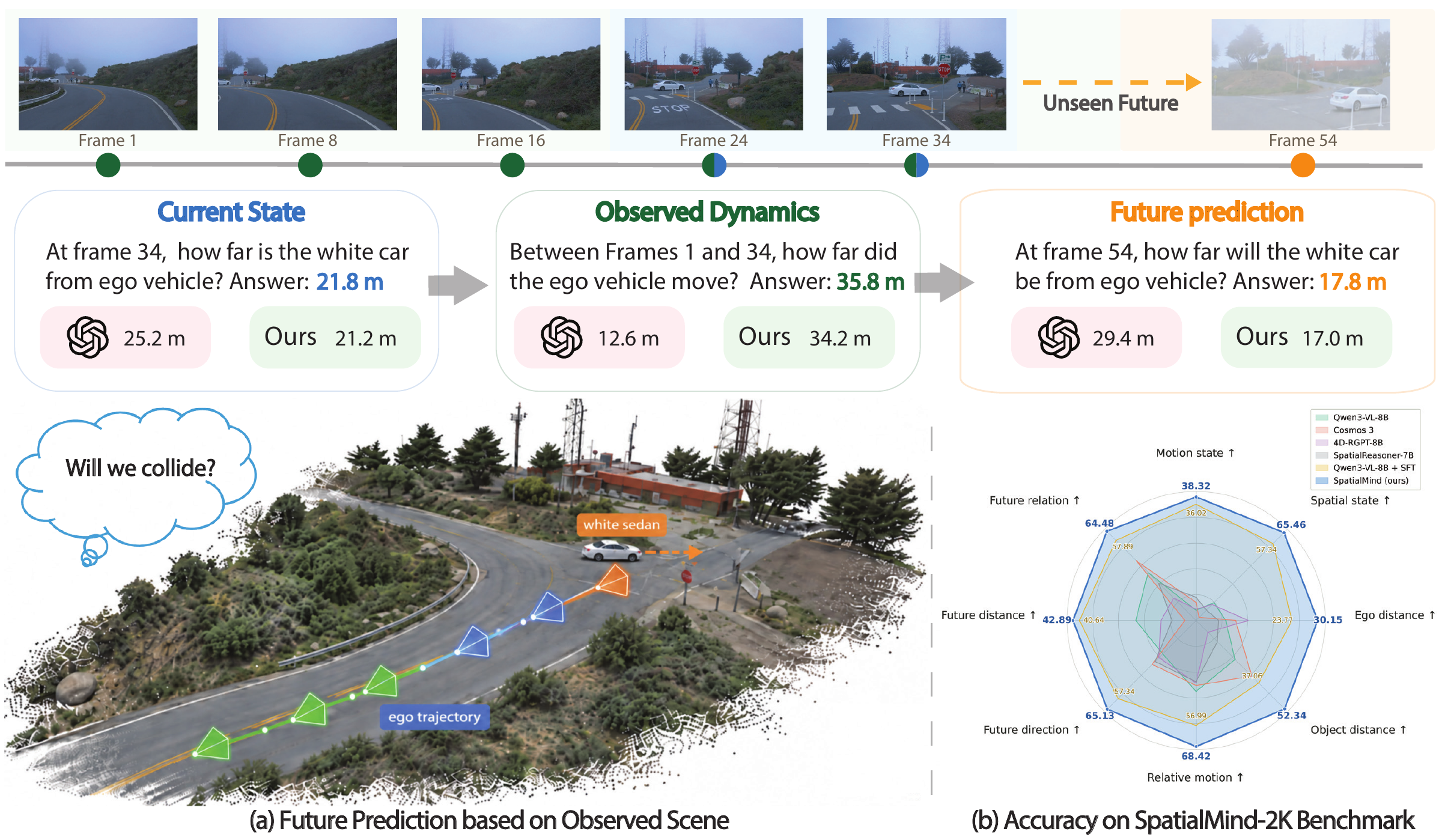

SpatialMind reasons from a current distance estimate through observed motion to future distance prediction. A driving example and an eight-task benchmark comparison illustrate the approach. — **From sight to foresight.** SpatialMind connects current spatial states, observed dynamics, and future prediction in a shared reasoning framework.

01 / OVERVIEW

Abstract

Predicting future spatial states supports collision avoidance and timely decision-making in dynamic environments. However, existing vision-language models (VLMs) and benchmarks for spatial reasoning primarily focus on observed scenes, leaving predictive spatial reasoning beyond the observed interval underexplored. To this end, we introduce SpatialMind, a metric-scale VLM for spatial reasoning and future prediction. Its metric depth adapter anchors spatial reasoning to real-world scale, while its progressive state chain establishes current spatial states and observed dynamics as the foundation for future prediction.

Given a video prefix, SpatialMind predicts distances, motion directions, and spatial relations in both observed and unseen future frames. For training and evaluation, we build a scalable data engine that grounds entity descriptions in metric geometry to generate question-answer pairs and state supervision. Using this engine, we construct the SpatialMind-30K dataset and the SpatialMind-2K benchmark, both covering driving and everyday egocentric scenes. The benchmark spans eight tasks across three levels: current-state understanding, observed-dynamics understanding, and future prediction. Experiments show that SpatialMind substantially outperforms both general and spatially specialized models on our benchmark while achieving competitive zero-shot performance on VSI-Bench, OSI-Bench, and VLM4D.

L1
Current state
Where are things now?
Motion & spatial state
L2
Observed dynamics
How are things changing?
Motion distance & relative motion
L3
Future prediction
What happens next?
Future direction, distance & relation

02 / APPROACH

Grounded in geometry.
Reasoning through time.

An observed RGB video and a spatial question are the starting point. Metric geometry provides scale; a progressive state chain connects the evidence to the answer.

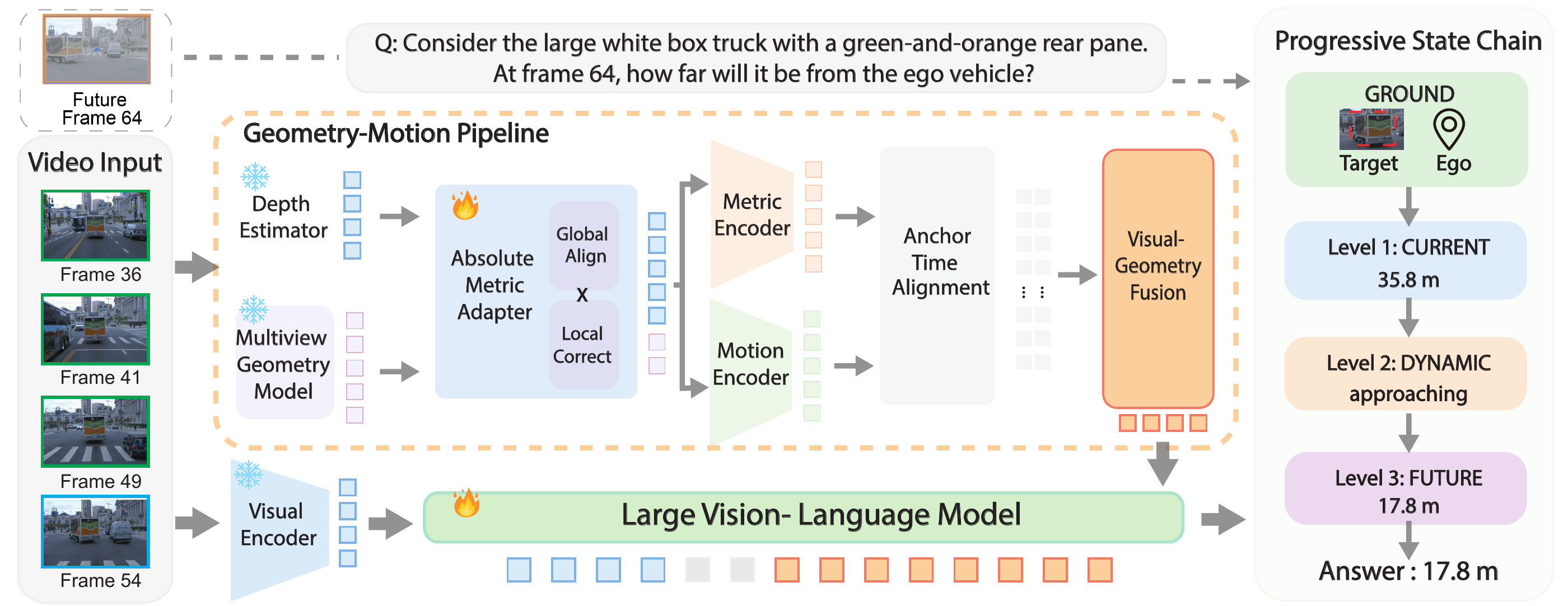

SpatialMind architecture with metric depth refinement, separate geometry and motion encoders, anchor time alignment, visual-geometry fusion, and progressive state-chain reasoning. — **Model architecture.** Global and local depth corrections, temporal geometry fusion, and structured reasoning connect video observations to metric spatial predictions.

01 Metric depth adaptation: Refine depth estimates using multiview geometry, with global alignment and local corrections that anchor spatial features to real-world scale.
02 Temporal geometry fusion: Encode geometry and camera motion separately, align their features in time, and fuse them into the RGB visual tokens through cross-attention.
03 Progressive state chains: Ground the target, establish its current state, and reason through observed dynamics to a future prediction. Future frames are withheld from model inputs.

03 / DATA & BENCHMARK

Eight tasks. Two worlds.

Driving scenes and everyday egocentric activities, organized into a common hierarchy of spatial reasoning.

30,677Training QA pairs

2,000Benchmark questions

8Tasks across 3 levels

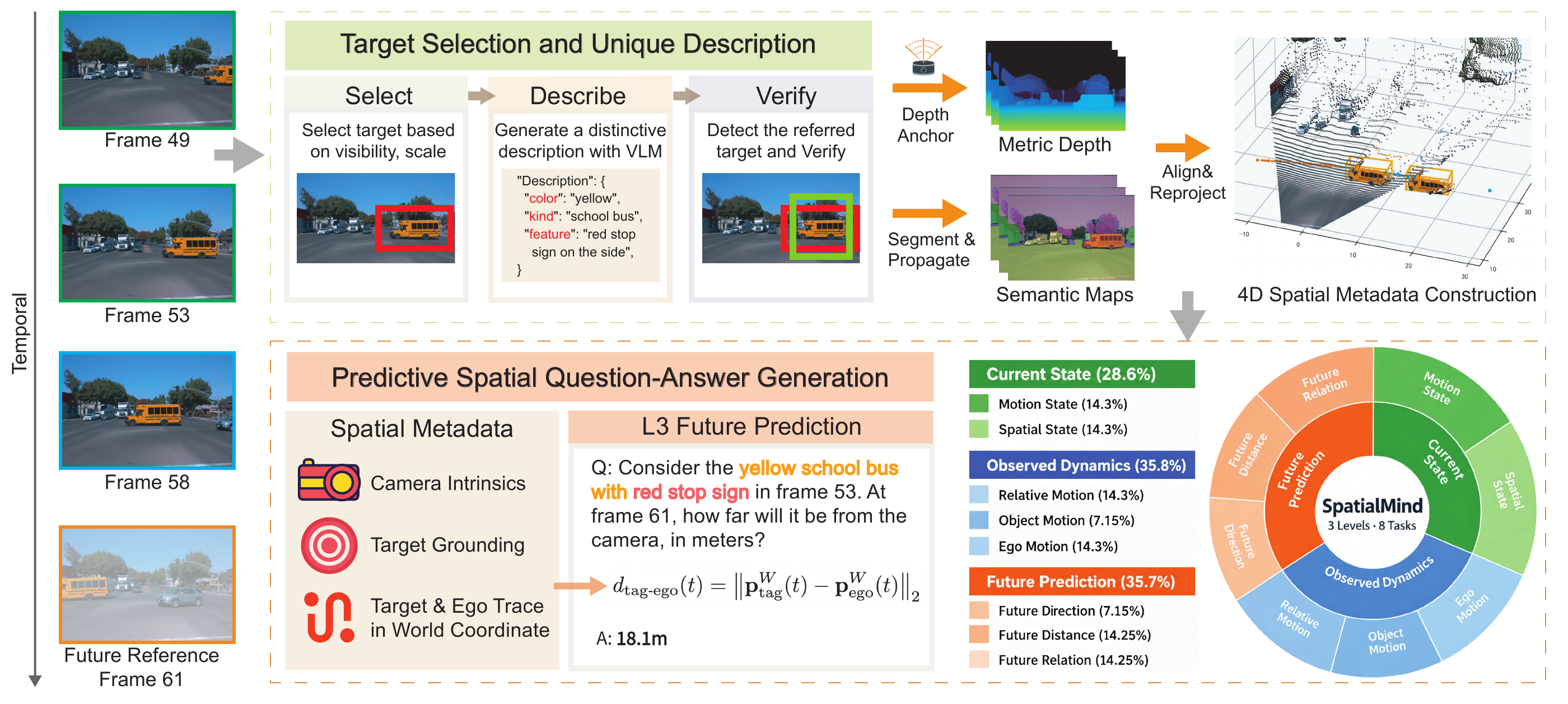

The SpatialMind data engine links target selection and verified entity descriptions to metric geometry, temporal spatial metadata, and question-answer generation across eight tasks. — **SpatialMind data engine.** A Select–Describe–Verify process grounds natural-language descriptions in metric geometry. Semantic propagation and temporal alignment support question generation and state-chain supervision from Waymo and Ego-Exo4D videos.

04 / EVALUATION

Results

SpatialMind improves predictive spatial reasoning on SpatialMind-2K and transfers to three external benchmarks without additional fine-tuning.

52.65% overall score

+6.95 pp over Qwen3-VL-8B + SFT

Table 1. Results on SpatialMind-Benchmark (%)
Model	Overall	L1 · Current state		L2 · Observed dynamics			L3 · Future prediction
Model	Overall	Motion	Spatial	Ego distance	Object distance	Relative motion	Direction	Distance	Relation
Proprietary Models (API)
GPT-5.6 Luna	22.60	20.28	14.34	12.59	25.87	44.76	27.27	14.04	25.61
Claude Sonnet 5	27.80	16.43	23.08	9.79	26.57	49.30	30.07	23.51	44.21
Gemini 3.8 Flash	30.19	21.62	18.66	19.39	49.65	52.85	20.28	41.34	22.91
GPT-6-Astra (medium)	39.00	38.46	13.99	19.58	51.75	73.78	39.86	29.12	52.28
General-purpose VLMs
Qwen2.5-VL-3B	14.40	5.95	5.25	10.85	2.80	32.20	28.70	17.85	13.00
Qwen3.5-9B	10.30	10.85	9.45	5.60	13.30	9.45	4.20	20.35	8.05
LLaVA-NeXT-7B	14.40	5.25	6.65	5.95	7.00	30.10	31.50	15.05	18.60
Qwen2.5-VL-7B	17.60	3.85	17.15	2.45	30.80	33.60	25.90	10.15	27.70
Cosmos3-8B	18.95	5.60	2.40	9.80	32.90	35.30	32.20	3.90	43.20
Qwen3-VL-8B	20.20	3.15	13.30	7.35	23.10	38.50	24.50	21.00	34.70
Spatially specialized VLMs
SR-3D-8B	9.60	2.45	6.30	12.60	2.10	24.85	14.70	8.75	3.50
SpatialRGPT-8B	9.70	6.65	5.25	5.25	2.80	17.85	34.30	3.85	10.20
SpatialBot-3B	11.80	2.80	7.70	1.05	34.30	23.45	28.70	2.80	13.00
VLM-3R-7B	14.00	7.90	1.05	4.20	7.70	31.50	29.40	2.45	32.65
SpaceR-7B	14.70	5.60	14.70	5.25	14.70	33.25	21.70	3.50	22.45
ViLaSR-7B	14.80	7.70	9.10	7.00	7.00	32.20	16.80	6.00	30.15
SR-ReaL-8B	14.90	5.95	11.55	11.90	8.40	31.50	32.20	7.05	16.15
4D-RGPT-8B	15.40	3.50	11.90	12.95	7.00	33.95	27.30	12.25	16.15
SpatialReasoner-7B	15.80	7.20	7.70	5.60	12.60	33.25	30.10	8.40	27.00
SFT on SpatialMind training data
Qwen3-VL-8B + SFT	45.70	36.02	57.34	23.77	37.06	56.99	57.34	40.64	57.89
SpatialMind (Ours)	52.65	38.32	65.46	30.15	52.34	68.42	65.13	42.89	64.48

Within each model group, bold marks the best result and underline marks the second best. Numerical tasks use mean relative accuracy (MRA); multiple-choice tasks use accuracy (ACC).

Scroll horizontally to view all eight tasks.

A CLOSER LOOK · SECTION 5.1

Three observations

Different model families. A shared challenge: reasoning at real-world scale.

01Proprietary Models

Astra sets the pace.

39.00%
GPT-6-Astra (medium) · Overall

GPT-6-Astra leads proprietary models on six of eight tasks. The two exceptions are current-state spatial estimation and future-distance prediction, both requiring absolute metric distances.

Lead over the next-best proprietary model+8.81 percentage points
02General-Purpose Models

Categories come easier.

20.20%
Qwen3-VL-8B · Best overall in this group

Direction and relation questions are easier than metric estimation. Current-state measurements and ego-motion distance remain challenging: categorical future accuracy does not establish metric understanding.

Key challengeAccurate metric estimation
03Spatial Expert Models

Geometry alone falls short.

9.60–15.80%
Overall range across spatial experts

Depth and 3D priors still leave weaknesses in current-state measurements, ego-motion distance, and future-distance prediction. Geometric priors alone do not ensure metric accuracy across driving and egocentric scenes.

Key challengeReasoning across spatial scales

SpatialMind: zero-shot evaluation on external benchmarks (%)
Benchmark	Average / Overall	Breakdown
VSI-Bench	46.4	Measurement: 52.1 · Spatiotemporal: 52.4
OSI-Bench	35.0	Static: 30.2 · Dynamic: 33.4
VLM4D	53.4	Real: 53.5 · Synthetic: 52.9

Each benchmark retains its original scoring convention. Scores across different benchmarks are not directly comparable.

BEYOND OUR BENCHMARK · SECTION 5.2

What transfers to new scenes?

Three external benchmarks, evaluated without additional fine-tuning.

01VSI-Bench

Metric understanding transfers indoors.

Benchmark focus
Video-based spatial understanding, with an emphasis on metric measurement and spatiotemporal reasoning.

SpatialMind leads measurement and spatiotemporal reasoning among the compared models, while remaining competitive overall. These results support the transfer of metric reasoning to indoor scenes.

Strongest resultsMeasurement + spatiotemporal
02OSI-Bench

Stronger open-world spatial inference.

Benchmark focus
Open-world spatial inference in both static and dynamic metric settings.

SpatialMind leads overall and in static metric reasoning among the compared models, with competitive dynamic performance. This supports its ability to reason about spatial relationships in open-world environments.

Strongest resultsOverall + static reasoning
03VLM4D

Motion reasoning across visual domains.

Benchmark focus
Spatial and temporal understanding across real and synthetic videos, including motion and perspective changes.

SpatialMind leads overall and on both real and synthetic videos among the compared models, supporting the transfer of motion and perspective understanding across visual environments.

Strongest resultsReal + synthetic videos

05 / REFERENCE

BibTeX

SpatialMind

@misc{wang2026spatialmind,
  title={From Sight to Foresight: Predictive Spatial Reasoning
         in Vision-Language Models},
  author={Wang, Feiran and Wang, Xiaoqi and Li, Ziwei and
          He, Wenbin and Yan, Yan and Ren, Liu},
  year={2026},
  url={https://brack-wang.github.io/spatialmind/}
}
